Mild Steel
Detail
Technical Data
Downloads
- Material: Mild Steel - bright zinc plated
- Liner: TPE black rubber
- A range of P-clips for secure clamping of pipes, cables and hoses
- Zinc plated provides excellent corrosion resistance
- Operating temperature of -30°C to +60°C
| Item No. |
Pack
Quantity |

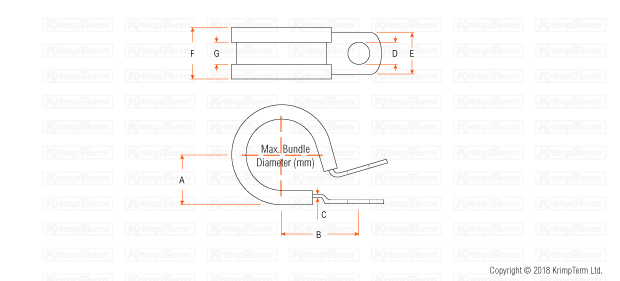

Dimensions (mm) |
Max. Bundle
Diameter (mm) |
| A |
B |
C |
D |
E |
F |
G |
| EPC05 |
50 |
3.5 |
13.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
5 |
| EPC06 |
50 |
4.5 |
15.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
6 |
| EPC08 |
50 |
5.5 |
16.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
8 |
| EPC10 |
50 |
6.5 |
18.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
10 |
| EPC13 |
50 |
8.0 |
19.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
13 |
| EPC16 |
50 |
9.5 |
20.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
16 |
| EPC19 |
50 |
11.0 |
21.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
19 |
| EPC21 |
50 |
12.0 |
22.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
21 |
| EPC25 |
50 |
15.0 |
24.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
25 |
| EPC29 |
50 |
16.0 |
26.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
29 |
| EPC35 |
50 |
19.0 |
29.0 |
0.8 |
6.6 |
12.0 |
15.0 |
7.0 |
35 |
