UV Resistant Cable Ties
Detail
Technical Data
Downloads
- Material: UL94V-2 flame rated, UL approved Nylon 66.
- Carbon black added for greater resistance to ultra violet in outdoor usage.
- Prolongs useful life of cable tie under sunshine/outdoor application.
- UV resistant cable tie: for outdoor use with UV feature.
- Self locking for fast and easy application.
- Operating temperature: -40° to +85°C.

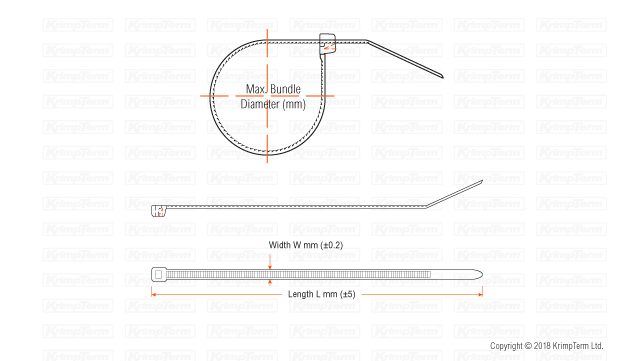

| Item No. |
Colour |
Pack
Quantity |
Width W
(mm) |
Thickness
mm |
Length L
(mm) |
Max. Bundle
Diameter (mm) |
Min. Tensile
Strength (kg) |
Head Depth
d2 (mm) |
Head Width
A (mm) |
| UVCT1-B |
Black |
100 |
2.5 |
1.0 |
100 |
22 |
8 |
3.7 |
4.4 |
| UVCT2-B |
Black |
100 |
3.6 |
1.4 |
150 |
36 |
18 |
4.8 |
6.4 |
| UVCT5-B |
Black |
100 |
4.8 |
1.35 |
203 |
52 |
22 |
5.6 |
8.0 |
| UVCT8-B |
Black |
100 |
4.8 |
1.5 |
300 |
83 |
22 |
5.3 |
8.0 |
| UVCT10-B |
Black |
100 |
4.8 |
1.5 |
368 |
105 |
22 |
5.3 |
8.0 |
| UVCT11-B |
Black |
100 |
7.6 |
1.8 |
370 |
101 |
55 |
6.8 |
12.5 |
Data Sheets
You need to be registered and signed in to download these resources.
UV Resistant Cable Ties.pdf
Last updated On 01-Mar-2026
Size 275KB
|
